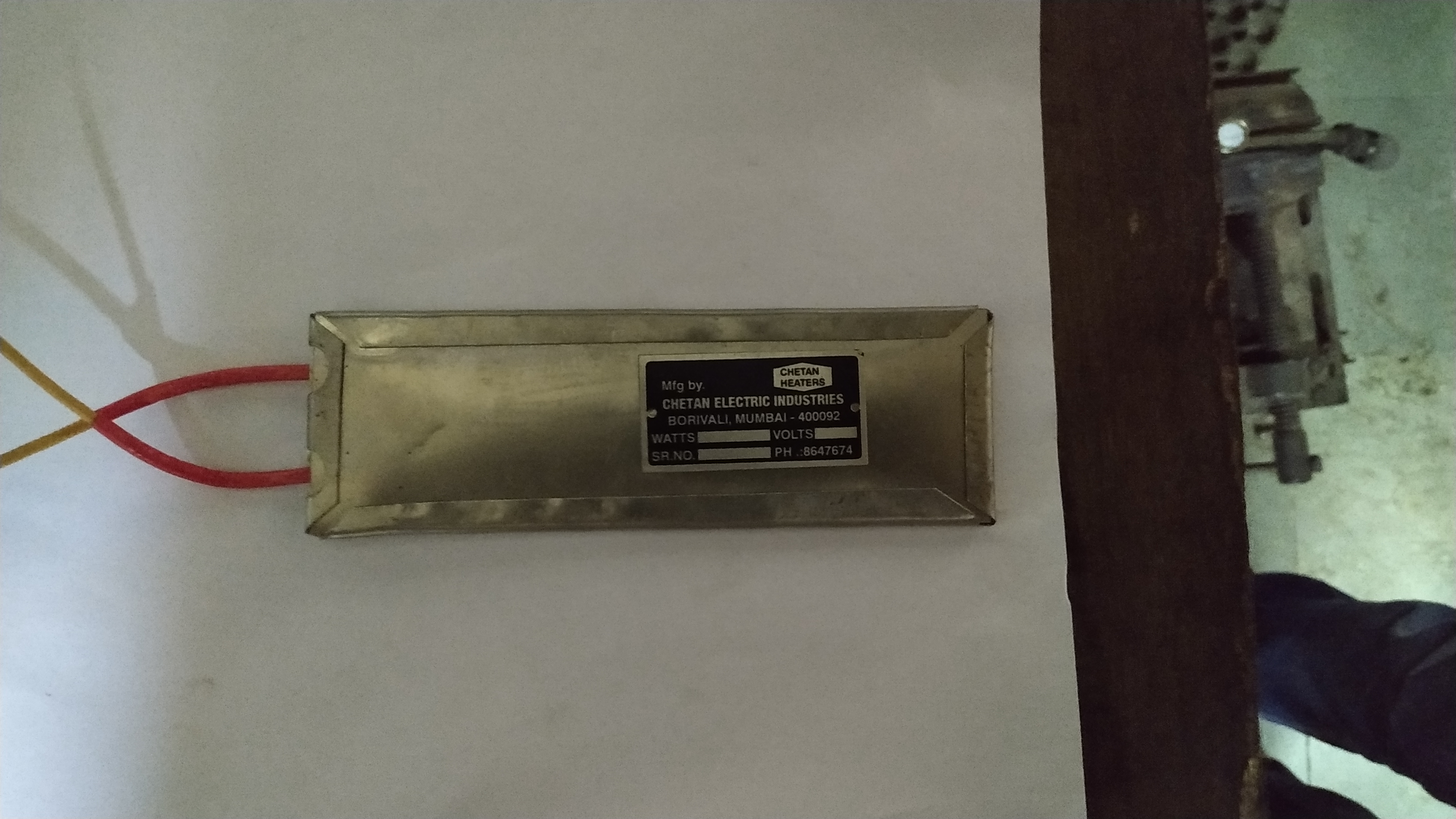

Mica Strip Heaters are manufactured using NiCr wire around high grade Mica Insulation enclosed in a Stainless Steel , Mild Steel , Aluminium or Brass sheath. The shape can be rectangular, circular, hollow circular etc as per the requirements. The terminal can be designed stud or wire type.They can be customised in any variety of sizes, cut-outs and holes.This heaters are ideal where heating is required on a flat surface
They are widely used in Packing, Hot Plates, Moulding etc.
Length : Min 30mm
Max 2000mm
Width : Min 20mm
Diameter : Min 40mm
Max 1000mm
Voltage : 20V – 480V
Wattage : 15-25 watts/sq. in.
Thickness : 3mm-5mm(±1mm)
Temperature : Max 400ºC
Tolerance : 5-10%(Resistance and Wattage)
