Construction

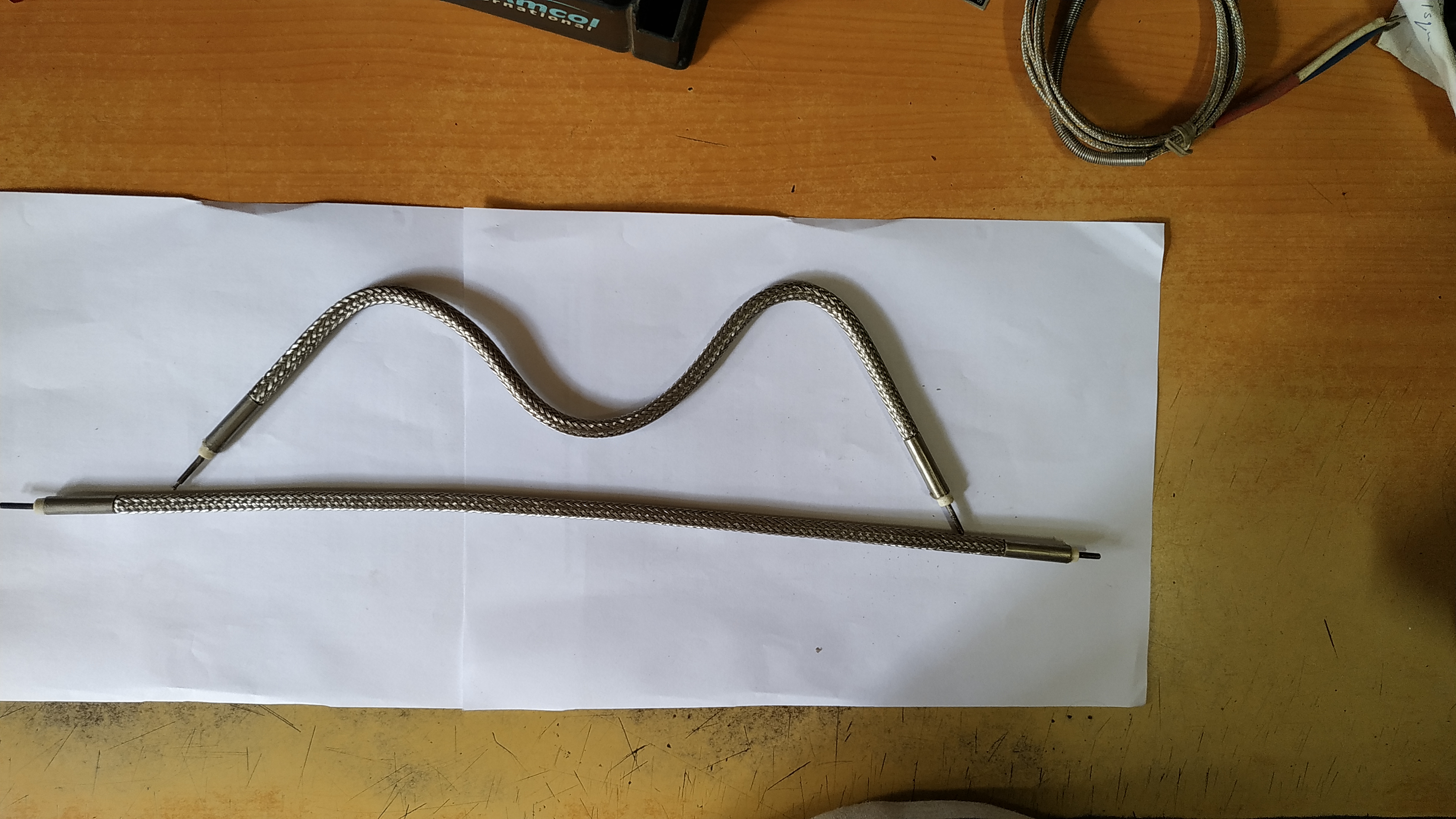

Flexible Tubular Heaters can be formed into any shape by hand and fitted easily into the Manifold grooves with minimum efforts. It saves the time required in customising a formed Manifold Tubular Heater.For getting best results minimum 70% of the heater sheath must be in contact with the groove. 60mm(including stud) of the heater from both the ends won’t be bendable. The terminal can be designed stud or wire type.This heaters are customised in a variety of sizes as per the requirements.
Applications
They are used in Hot Runner Manifolds etc.
Specifications
Voltage : 110V-230V
Diameter : 6.5mm-8mm
Wattage : 50-60 watts/sq. in.
Temperature : Max 600ºC
Tolerance : ±5-10%(Resistance)
